API Swaco mongoose composite shaker screen

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 6-9 Days

Basic Info

Model No.: SJS

Certification: SGS, ISO 9001:2000

Sieve Mesh Number: 20-325

Layer: Other

Additional Info

Packaging: Carton box,then wooden box

Productivity: 600pcs per day

Brand: Shengjia

Transportation: Ocean,Air

Place of Origin: Anping,Hengshui,City

Supply Ability: 1000pcs/day

Certificate: API Certificate,ISO90012000

HS Code: 8421999090

Port: Xingang

Product Description

Packaging & Delivery

Selling Units:Single itemSingle package size: 59X120X5 cm

Single gross weight:14.0 kg

Package Type:carton box,

outside wooden case again

Lead Time :2days


Swaco shaker screen


Shengjia enjoy first-class equipment and technology to offer first-class products.

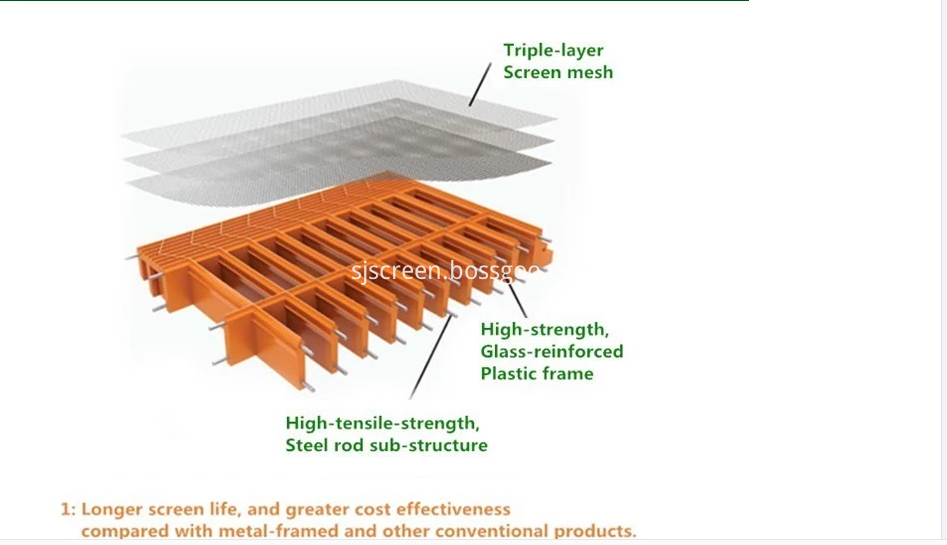

composite  frame screens are mostly applied to the shale shakers with wedge fastening equipment. The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction. They are sturdy and reliable. These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply steel frame screens with mesh sizes ranging from 20 to 250.

Steel frame screen is in common used presently, that are constructed mostly withe two or three stainless steel layers bonded tightly to the steel frame.The frame is made up of the high-strength square steel tube or flat steel welded to multi- ribbed construction.These layers are coupled with the frame through metal backing plate or bonded straightly as well.We possess the strong experience and the ripe technology,and will provide various specifications of steel frame screens to serve the clients' demands.

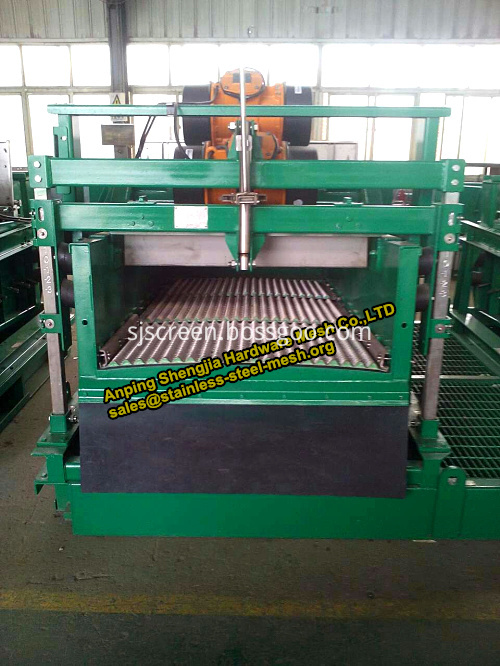

Swaco Mongoose Shale Shaker Screen 1


Oil drilling Swaco mongoose / Meerkat series shaker screen for solid control is spare part for mongoose series shale shaker from m-i swaco. About shaker screen, there are common pretensioned steel frame screen and composite frame screen. Composite frame screen have longer service life, better appearance, and convenience on operation.

Followings are the specifications for Swaco Shaker Screen.

Item
Brand & Model for Shaker
API/Mesh Range
Dimension
(Length x Width)
Weights
SJ-01
Composite Swaco Mongoose/Meerkatpt
20-325
1165*585 mm
13.0kgs
SJ-02
Steel Frame Swaco Mongoose/Meerkatpt
20-325
1165*585 mm
13.0kgs
SJ-03
Swaco ALS-2
20-325
1212*1141 mm
9.0kgs
SJ-04
Swaco BEM-3
20-325
1155*903 mm
8.0kgs
SJ-05
Swaco D380
20-325
1180*712 mm
13.0kgs
SJ-06
Swaco Mamut
20-325
1115*763 mm
13.0kgs
SJ-07
Swaco MD-3
20-325
610*650 mm
7.0kgs
SJ-08
Waved Type Swaco Mongoose
20-325
1165*585 mm
16.0kgs



Product Detailed Images

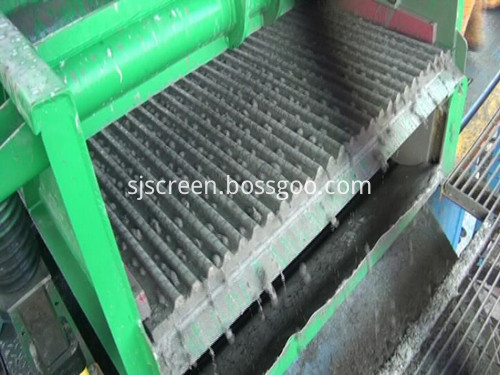

Shale Shaker Screen Drilling fluids



Products Advantage





Features of Steel frame screen
1)
Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better.

2)High strength frame, multi-ribs and the mesh cloth with moderate tension , from one reliable combination , which can increase screen`s acceptable flow , the intensity and the lifetime
3)The wedge-shaped fastening device, can make the erection of screens more handily and quickly

4)The mesh divided into many independent small units by grids of the backing plate ,can prevent rips or tears from spreading overmuch. Accessory prepared rubber stoppers

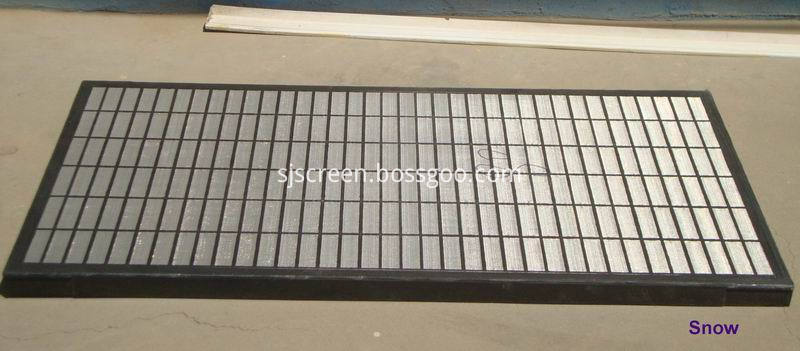

Shale Shaker Screen Drilling fluids






Swaco Mongoose Shaler Packing 5

Swaco Mongoose Shaler Packing 4


Customer Visiting


psb (2)_meitu_3


Shale Shaker Screen Exhibition in Rio Oil and Gas exhibition


mmexport1441081255184

mmexport1437619145479
